Designed for heavy-duty racks and small data centers, our 5kVA UPS systems deliver continuous, clean power with enterprise-level features, superior efficiency, and flexible runtime options.
5KVA Rack Mount UPS Specifications
True On-line Double-Conversion UPSSingle Phase UPSFactory direct price
Specification
Details
Capacity
5kVA / 5kW
Input Voltage
208/220/230/240VAC
Output Voltage
208/220/230/240VAC
Battery Type
Sealed Lead Acid (Maintenance-Free)
Typical Runtime
10 minutes at full load (extendable with additional batteries)
Form Factor
Rack Mount
Key Features
AVR, LCD Display, Remote Monitoring
Warranty
2 years (parts and labor)
Our rack ups power supply is also available in 1kVA, 2kVA, 3kVA, 6kVA and 10kVA UPS sizes
Support for external battery packs (EBP), SNMP monitoring, High efficiency + ECO mode, Wide Input Voltage & Frequency Range
5KVA Tower UPS Specifications
True On-line Double-Conversion UPSSingle Phase UPSFactory direct price
Specification
Details
Capacity
5kVA / 5kW
Power Factor
1
Input Voltage
208/220/230/240VAC
Output Voltage
208/220/230/240VAC
Battery Type
Sealed Lead Acid (Maintenance-Free)
Typical Runtime
10 minutes at full load (extendable with additional batteries)
Form Factor
Tower
Key Features
AVR, LCD Display, Remote Monitoring
Warranty
2 years (parts and labor)
Our tower UPS in this series is available in 1kVA, 2kVA, 3kVA, 6kVA and 10kVA UPS sizes
A 5kVA UPS (5,000 VA) is the sweet spot for organizations that need more than rack-level protection but aren't yet at full-room UPS scales. Our 5kVA models combine high power density with low total cost of ownership (TCO), making them ideal for edge data centers, colocation cages, and critical infrastructure.
High-density power for multi-server racks and network closets
Optimized efficiency—lower electricity and cooling costs
Scalable runtime with optional battery packs
True online double-conversion for zero transfer time protection
Advanced monitoring: SNMP, Modbus, and cloud integrations
Redundant and parallel-capable topologies for increased availability
Designed for performance and reliability
From lithium-ion options to service-friendly hot-swap batteries, our 5kVA UPS units are engineered to minimize downtime and maintenance. Expect high input power factor, clean sine-wave output, and compatibility with modern server power supplies—ensuring predictable performance under heavy loads.
Get a tailored 5kVA solution
Need a 5kVA configuration with extended runtime, lithium chemistry, or N+1 redundancy? Tell us about your load and required runtime and our power engineers will propose an optimized solution.

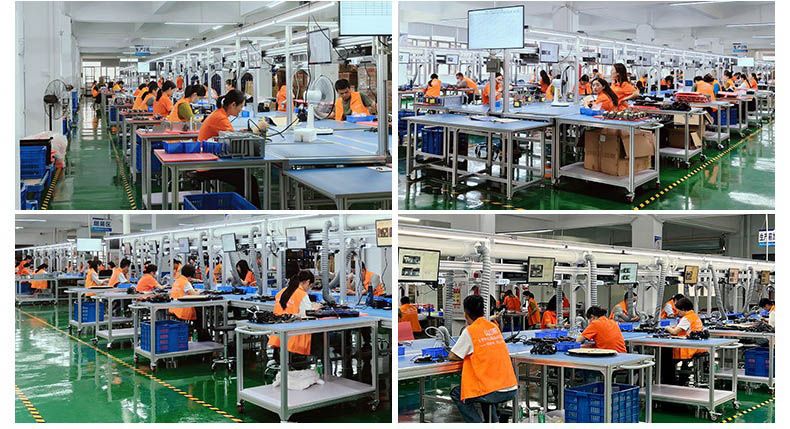

As a professional UPS manufacturer in China, we design and produce reliable 5kVA uninterruptible power supply systems for industrial, commercial, and critical infrastructure applications worldwide. Our solutions support customization, OEM/ODM services, and flexible battery configurations to meet diverse project requirements.
How is 5kVA different from 4kVA or 3kVA?
A 5kVA UPS offers roughly 25–66% more apparent power capacity than 4kVA/3kVA models. This extra headroom supports higher-density compute, additional storage, or peripheral equipment without needing a second UPS, simplifying power architecture and reducing footprint.
What runtime can I expect from a 5kVA UPS?
Runtime depends on load and battery configuration. At 50% load a typical 5kVA unit with standard batteries can give tens of minutes; adding external battery packs or lithium options can extend runtime to several hours.
Can 5kVA UPS units be paralleled for more capacity?
Many of our commercial 5kVA models support parallel or redundant configurations (N+1) to increase capacity or availability. Confirm parallel capability in the product datasheet and consult our engineers for configuration guidance.
Is lithium battery technology available for 5kVA systems?
Yes—lithium-ion batteries are available for many 5kVA platforms, offering higher cycle life, smaller footprint, and faster recharge. We can help evaluate lifecycle cost vs. lead-acid options for your environment.
How do I size a 5kVA UPS for my equipment?
Calculate the total wattage of connected equipment, account for power factor, and add at least 20–30% headroom for growth. If unsure, provide your equipment list and our team will size the UPS and battery runtime for your targets.
