Enterprise 10kVA UPS Systems | Reliable Power Protection

Safeguard your mission-critical infrastructure with our industry-leading 10kVA uninterruptible power supplies. Engineered for demanding environments, our UPS systems deliver unmatched reliability, scalability, and performance. Protect data centers, telecommunications networks, industrial facilities, and enterprise operations from power disruptions—ensuring 99.99% uptime and zero business interruption.

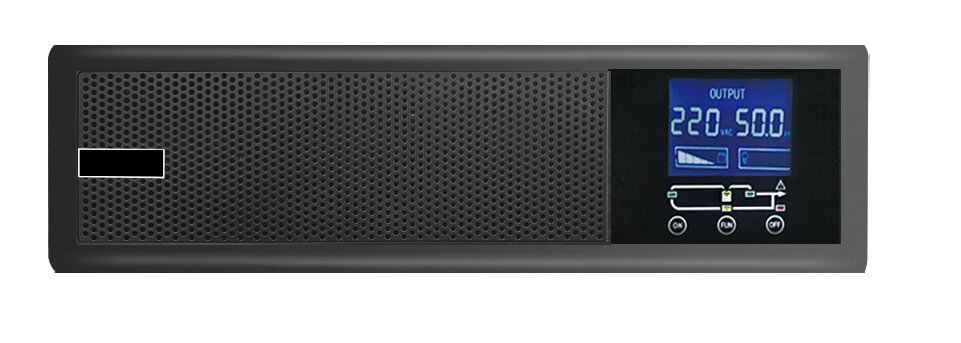

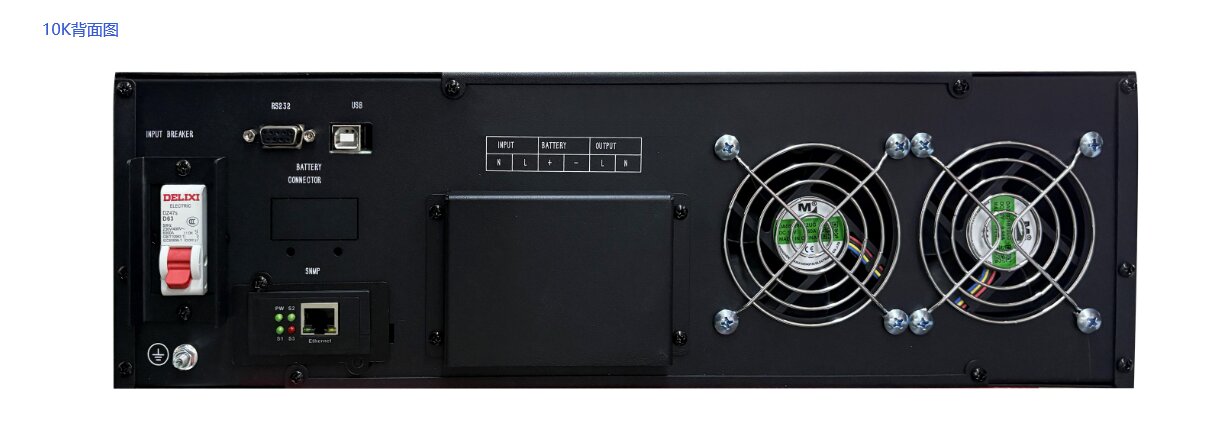

10KVA Rack Mount UPS

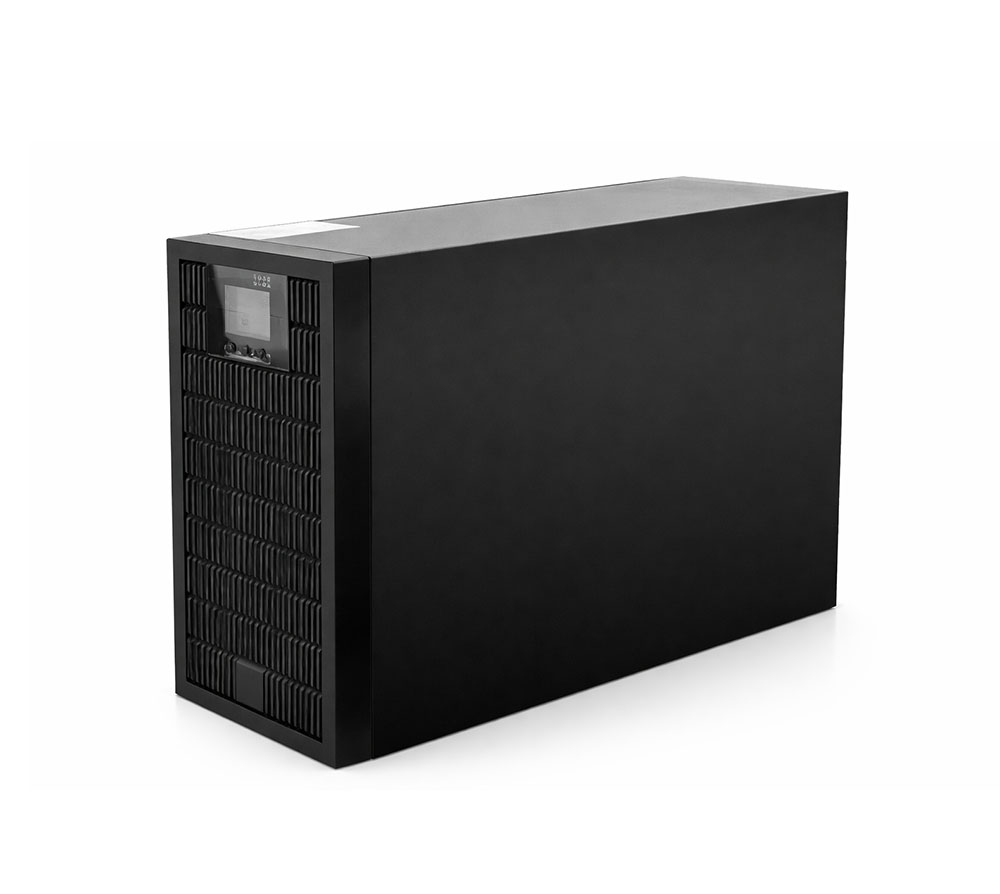

10KVA Tower UPS

10KVA Rack Mount UPS Specifications

True On-line Double-Conversion UPS Factory direct price

The RM11-H Series is a newly developed, next-generation general-purpose UPS designed to provide reliable power protection. Featuring a flexible tower and rack-mount compatible design and an online double-conversion topology, it effectively protects equipment from power outages, over-voltage and under-voltage conditions, voltage sags and surges, fluctuations, harmonic distortion, electrical noise, and frequency variations, ensuring a clean and stable power supply.

Application Scenarios

IT loads for government, finance, education, and small/medium enterprises and institutions.

Key Features

Online double-conversion design with microprocessor control.
LCD display for easy operation and maintenance.
Wide input voltage range: 0–300 VAC, suitable for unstable grid conditions.
Input power factor ≥ 0.99 with energy-efficient green power design.
Selectable output power factor of 0.8 / 0.9 / 1.0 for strong load capability.
Utility-mode efficiency up to 94%+, supporting energy-saving operation.
Long-runtime models with charging current up to 12 A and multi-stage intelligent charging management.
Comprehensive protection including under/over-voltage, short circuit, and over-temperature.
Standard RS232 communication port with optional SNMP card and USB interface.

RM11 Series High-Frequency Tower/Rackmount UPS Technical Specifications

Model		01L-H	01-H	02L-H	02H	03L-H	03-H	06L-H	06-H	10L-H	10-H
Model		01L-UNR	01-UNR	02L-UNR	02-UNR	03L-UNR	03-UNR	06L-UNR	06-H	10L-UNR	10-H
Capacity		1KVA		2KVA		3KVA		6KVA		10KVA
Input	Input wiring	L + N + PE
	Rated voltage	208 / 220 / 230 / 240VAC
	Voltage range	0 ~ 300VAC
	Frequency range	44 ~ 56Hz @ 50Hz / 54Hz ~ 66Hz @ 60Hz
	Power factor	≥ 0.99
Output	Output wiring	L + N + PE
	Output voltage	208 / 220 / 230 / 240VAC
	Output accuracy	±1%
	Output frequency	Online mode: follows utility frequency; Battery mode: 50/60 Hz ± 0.05
	THDv	≤ 2% (linear load); ≤ 5% (non-linear load)
	Power factor	0.8
	Transfer time	Utility → Battery: 0 ms; Inverter → Bypass: 4 ms
	Overload capability	Utility mode: 30 min @ 102%-0% load; 10 min @ 0%-130% load; 30 s @ 130%-150% load; 200 ms @ >150% load Battery mode: 30 min @ 102%-0% load; 10 min @ 0%-130% load; 30 s @ 130%-150% load; 200 ms @ >150% load
Efficiency (utility mode)		> 94.5%		> 95.5%		> 95.5%		> 95%		> 95%
Battery	Battery voltage	36Vdc	Built-in 3x12V 7AH	72Vdc	Built-in 6x12V 7AH	96Vdc	Built-in 8x12V 7AH	192Vdc	Built-in 16x12V 7AH	192Vdc	Built-in 16x12V 7AH
Battery	Charging current	1-12A(max)	1A	1-12A(max)	1A	1-12A(max)	1A	1-12A(max)	1A	1-12A(max)	1A
Display		LCD display shows mode/load/battery/input/output, etc.
Communication		Standard RS232; optional SNMP card and USB
Environment	Operating temperature	0 ~ 40°C
	Relative humidity	20% ~ 95%RH (non-condensing)
	Altitude	≤ 1000 m; above 1000 m, derate 1% per 100 m; max. 4000 m (ref. IEC 62040)
Dimensions	Tower: L x W x H (mm)	145x315x319		145x400x319		145x400x319		190x454x322	190x454x700	190x454x322	190x454x700
Dimensions	Weight (kg)	4.1	8.3	5.7	14.1	6.4	21	9.8	43.2	11.2	54.6
Dimensions	Rack: L x W x H (mm)	438x315x86.8		438x400x86.8		438x400x86.8		438x500x86.8	/	438x500x86.8	/
Dimensions	Weight (kg)	4.8	9.8	22.6	8	8.2	21	8.8	/	11	/

Request Quote

Why Choose Our 10kVA UPS Systems?

A 10kVA UPS (Uninterruptible Power Supply) is the gold standard for protecting large-scale IT infrastructure, data center clusters, server farms, and industrial equipment from power outages, surges, voltage fluctuations, and harmonic distortion. Our 10kVA UPS systems deliver enterprise-class performance, redundancy, and reliability—essential for mission-critical environments where downtime translates directly to business loss. Whether you operate a financial services facility, healthcare provider, telecommunications hub, or manufacturing plant, our 10kVA solutions ensure continuous operations and data integrity.

Key Advantages of 10kVA UPS Systems

High-Capacity Backup Power: Supports 15-25+ servers or 50-100+ workstations simultaneously
Enterprise-Grade Battery Management: Predictive battery monitoring extends life by 30-50%
Scalable & Redundant Architecture: Parallel operation capabilities for N+1 redundancy
Advanced Monitoring Interfaces: LCD displays, web consoles, and mobile app management
T-UNRee-Phase Support: Single and t-UNRee-phase input/output options for flexible deployment
Comprehensive Remote Management: SNMP, cloud integration, and proactive alert systems

Advanced Features & Technologies

Online Double-Conversion Technology: Zero-transfer-time switching for maximum equipment protection
Modular Battery Design: Easily expand runtime and capacity without downtime
Hot-Swappable Components: Replace batteries and modules without shutdown
Maintenance Bypass Switches: Service units while maintaining power continuity
Energy-Efficient Operation: High-efficiency modes reduce operational costs by 15-25%
EcoMode Technology: Intelligent energy management for sustainable operations
Advanced Network Integration: Cybersecurity-hardened management interfaces with encryption
Predictive Maintenance: AI-driven diagnostics minimize unexpected failures

Get Your Custom 10kVA UPS Solution Today

Every organization has unique power protection requirements. Our power protection experts are standing by to design a tailored 10kVA UPS solution that fits your infrastructure, budget, and operational goals. Benefit from:

✓ Free Site Assessment
Evaluate your power needs

✓ Custom Design
Optimized for your environment

✓ Competitive Pricing
Enterprise volume discounts

Business Impact: Why 10kVA UPS Systems Matter

Maximize Uptime & Business Continuity

Achieve 99.99% system availability with zero-transfer switching and redundant architectures. Prevent costly downtime that impacts operations, revenue, and customer confidence.

Protect Critical Data & Systems

Safeguard databases, applications, and intellectual property from corruption due to unexpected power loss. Ensure data integrity and regulatory compliance across your infrastructure.

Reduce Operational Costs

Modern energy-efficient 10kVA UPS systems cut electricity consumption by 15-25%. Modular designs reduce maintenance expenses and extend equipment lifespan by 30-50%.

Enhance IT Team Productivity

Automated monitoring and cloud-based management reduce manual oversight. Real-time alerts enable proactive maintenance, minimizing unexpected issues and emergency support calls.

Ensure Regulatory Compliance

Meet industry standards (HIPAA, PCI-DSS, SOX, etc.) that mandate backup power for critical systems. Maintain audit trails and compliance documentation automatically.

Future-Proof Your Infrastructure

Scalable, modular architecture grows with your business. Support t-UNRee-phase power, parallel redundancy, and advanced integrations without complete replacement.

10kVA UPS Systems: Frequently Asked Questions

What is a 10kVA UPS and why is it important for my business?

A 10kVA UPS is an enterprise-class uninterruptible power supply with a capacity of 10,000 volt-amperes (approximately 8-9 kW at 0.8-0.9 power factor), engineered to deliver robust backup power and protect mission-critical equipment from power disturbances. In today's digital economy, even brief power interruptions can cost enterprises $5,600-$12,000 per minute in lost productivity, data corruption, and operational disruption. A 10kVA UPS protects against downtime, preserves data integrity, and ensures business continuity.

How much equipment can a 10kVA UPS support and what's the typical deployment?

A 10kVA UPS typically supports 15-25+ physical servers, 50-100+ end-user workstations, or equivalent mixed IT infrastructure. Common deployments include: enterprise server racks, data center clusters, telecommunications switching centers, medical imaging facilities, manufacturing control systems, and financial trading floors. Always verify your equipment's total wattage and power factor to ensure compatibility. Our engineers can perform a free power audit to determine optimal sizing.

What are the core technologies and features that differentiate 10kVA UPS systems?

Premium 10kVA UPS systems include: online double-conversion architecture (zero-transfer-time switching), modular battery design, hot-swappable components, advanced monitoring dashboards, SNMP/web interfaces, cloud integration, predictive analytics, cybersecurity hardening, and optional t-UNRee-phase support. These features ensure maximum uptime, reduced operational costs, and proactive management of your power infrastructure.

How long will my equipment run on a 10kVA UPS during a power outage?

Runtime depends on total load and battery configuration. At 50% load (5kVA), most 10kVA systems provide 15-30 minutes of backup. At 25% load (2.5kVA), runtime extends to 45-90+ minutes. Modular battery packs can extend runtime to several hours. Most organizations use UPS systems to bridge power gaps and gracefully shut down systems, rather than sustain operations indefinitely. We recommend battery runtime planning during the initial assessment.

Can I monitor and manage my 10kVA UPS remotely, and what about alerts?

Absolutely. Modern 10kVA UPS systems support comprehensive remote management via web interfaces, mobile apps, SNMP protocols, and cloud platforms. You'll receive real-time alerts for power events, battery status, temperature anomalies, and predictive maintenance needs. This allows IT teams to proactively address issues and ensure uninterrupted operations 24/7/365.

Can I connect multiple 10kVA UPS units for redundancy and increased capacity?

Yes. Many premium 10kVA UPS models support parallel configurations (typically up to 4 units) for N+1 redundancy, where one unit can fail without loss of power protection. This architecture is critical for data centers and critical infrastructure facilities requiring fault tolerance and 99.99%+ uptime SLAs. Our engineers can design a redundant system that meets your availability requirements.

What's the difference between single-phase and t-UNRee-phase 10kVA UPS systems?

Single-phase UPS systems (120/240V) are ideal for smaller deployments and distributed locations. T-UNRee-phase systems (208V, 380V, 400V, 480V) are designed for data centers and large industrial facilities with t-UNRee-phase power distribution. T-UNRee-phase systems offer better power factor, higher efficiency, and support larger loads. We offer both options—let us know your facility's power distribution architecture.

How much money can a 10kVA UPS save my organization?

The ROI is substantial. Consider: average downtime cost = $5,600-$12,000/minute; a 15-minute outage = $84,000-$180,000 in losses. A single prevented outage justifies a 10kVA UPS investment. Additionally, energy-efficient modern UPS systems reduce operational costs by 15-25% compared to older models. Most enterprises see full ROI within 2-3 years. We provide detailed business case analysis during the consultation phase.
